Single Channel, 1 x SO-DIMM Slot, DDR4 2133MHz, up to 16GB
存儲 Storage
1 x SATA3.0, 1 x M.2 2242 (SATA SSD supported)
顯示 Display
Intel? HD Graphics 610
網口 Ethernet
1 x RJ45 Intel? I219-LM GbE (10/100/1000 Mbps) 1 x RJ45 Intel? I211AT (10/100/1000 Mbps)
音頻 Audio
Realtek? ALC269Q HD Audio Codec
BIOS
AMI UEFI BIOS

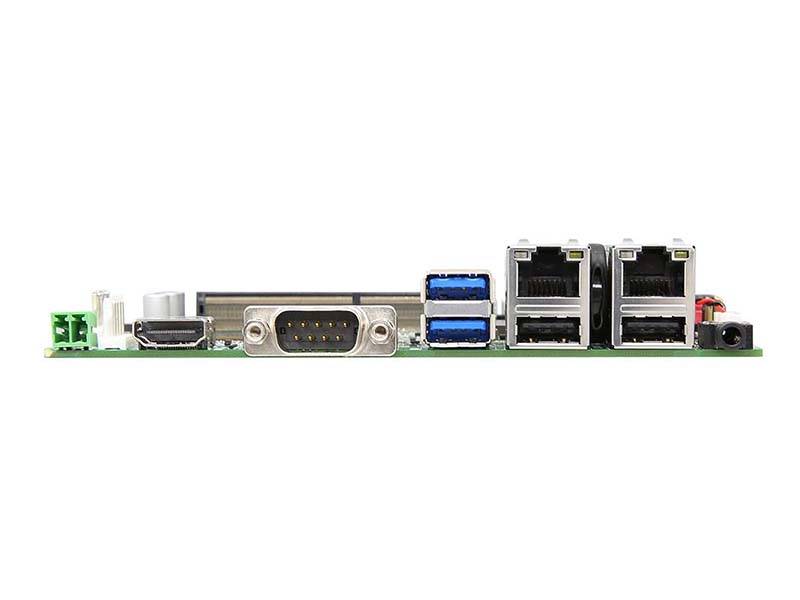

外部接口 Rear I/O
1 x HDMI: max resolution up to 4096 x 2303@24Hz 2 x USB2.0, 2 x USB3.0 (USB SR Pro supported) 2 x RJ45 1 x RS232/422/485 1 x Remote 1 x Line out&Mic in (2 in 1)
內部接口 Internal I/O
1 x LVDS: max resolution up to 1920 x 1200@60Hz【2】 1 x eDP: max resolution up to 4096 x 2304@60Hz【2】 4 x USB2.0 1 x 8 bit GPIO 1 x RS232/422/485,3 x RS232【1】 1 x Touch 1 x F_Panel (Power LED, HDD LED, Power button, reset button) 1 x DC IN 1 x Speaker Out (3W/4ohm)
擴展接口 Expansion
1 x M.2 2230 (WiFi/PCIe/USB2.0 signal supported) 1 x M.2 2242 (SATA signal supported) 1 x Mini-PCIe (WiFi/3G/4G supported) 1 x SIM
